產品詳細
型號
Model
|
SM-40-20 |
操作電壓
Connection voltage
|
380V |
電機總功率
Total motor power
|
22KW |
送料速度
Feed speed
|
0.1-1.5m/MIN |
鋸框行程
Stoke of frame
|
210mm |
鋸框運動次數
Number of strokes
|
480Number/min |
鋸切高度(無極調節)
Cutting height(flexble adjustalk)
|
60-200mm |

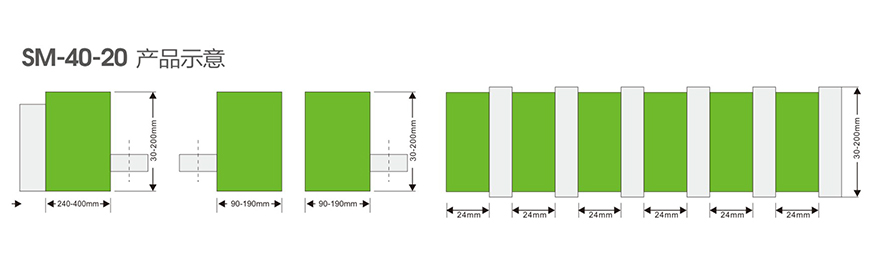

鋸切寬度(用側靠檔)
Cutting width side guide
|
160-400mm |
鋸切寬度(用中靠檔)
Cutting width center guide
|
2×30-200mm |
多排進料通道數量,帶7.5mm軌道(木方寬度可變)
Number of channels with 7.5mm guidance
|
2個通道最寬200mm |
木方長度
Block length
|
≥300mm |
木方高度公差(用中靠檔)
Block height difference/center guide
|
0-2mm |
最小成品厚度
Min.product thickness
|
2mm |
鋸切高度在200mm一下的鋸切精度
Cutting precision upto 120mm cutting height
|
±0.1mm |
鋸條數量
Number of saw blades
|
24 |
吸塵口
Suction tubes
|
3×120mm |
每個接口的吸塵數據
Sution performance per comection
|
1300立方/小時 |
壓縮空氣
Compressed air
|
≥6ba |
規格(長×寬×高)
Dimensions(Leng×width×heigh)
|
3600×1150×2500mm |
重量
Weight
|
3600kg |
